System Design: Build a Database Cluster with Primary(Master) & Read Replica(Slave)

Introduction

Completed

Github Repo

A common requirement for building scalable systems is creating read replicas for high availability & load balancing.

By scaling our DB horizontally we can more reliably ensure that our services don't slow down, or worse, go down.

Today we'll create a primary & replica Postgres DBs.

We'll use Docker to containerize them so we can deploy to the cloud easily.

Overview

  1. Setup Dockerized Repo & Primary DB:
    • a. Setup repo.
    • b. Define Primary Docker config files.
    • c. Define Primary DB config.
    • d. Define Primary Client authentication.
    • e. Setup Seed Table & Records.
    • f. Define Primary container/service.
  2. Create Dockerized Replica DB:
    • a. Define Replica service.
    • b. Config replica service in ./db/init-replica.sh.
  3. Check data replication from Master to Slave with shell or PGAdmin:
    • a. Test with bash shell.
    • b. Test with PGAdmin.

1. Setup Dockerized Repo & Primary DB

mkdir system_design_db_cluster
cd system_design_db_cluster
mkdir -p db/config
touch ./db/replication.sql ./db/config/postgresql.conf ./db/config/pg_hba.conf docker-compose.yml
# ./db/config/postgresql.conf

wal_level = replica
max_wal_senders = 10
wal_keep_size = 64MB
listen_addresses = '*'
primary_conninfo = 'host=primary port=5432 user=postgres password=password'
# ./db/config/pg_hba.conf

local   all             all                                     trust
host    all             all             0.0.0.0/0               md5
host    replication     all             0.0.0.0/0               trust
# ./db/replication.sql

CREATE TABLE IF NOT EXISTS Wizards (
  id SERIAL PRIMARY KEY,
  firstname VARCHAR(50),
  lastname VARCHAR(50),
  email VARCHAR(100)
);

INSERT INTO Wizards (firstname, lastname, email) VALUES
  ('Harry', 'Potter', 'harry.potter@hogwarts.edu'),
  ('Ron', 'Weasley', 'ron.weasley@hogwarts.edu'),
  ('Hermione', 'Granger', 'hermione.granger@hogwarts.edu');
version: '3.8'

services:
  primary:
    image: postgres:16
    container_name: primary
    environment:
      POSTGRES_DB: mydb
      POSTGRES_USER: postgres
      POSTGRES_PASSWORD: password
    ports:
      - '5432:5432'
    volumes:
      - primary_data:/var/lib/postgresql/data
      - ./db/replication.sql:/docker-entrypoint-initdb.d/replication.sql
      - ./db/config/postgresql.conf:/etc/postgresql/postgresql.conf
      - ./db/config/pg_hba.conf:/etc/postgresql/pg_hba.conf
    command: postgres -c config_file=/etc/postgresql/postgresql.conf -c hba_file=/etc/postgresql/pg_hba.conf
    restart: always

volumes:
  primary_data:
  • Check you can run docker-compose up --build to start your container/service/primary DB.
$ docker-compose up --build
[+] Running 1/0
 ✔ Container primary  Created                                                                                                                                                                                                            0.0s
Attaching to primary
primary  | The files belonging to this database system will be owned by user "postgres".
primary  |
primary  | Data page checksums are disabled.
primary  | Success. You can now start the database server using:
primary  |     pg_ctl -D /var/lib/postgresql/data -l logfile start
primary  |  done
primary  | server started
primary  | PostgreSQL init process complete; ready for start up.
primary  | 2025-05-03 08:08:24.024 GMT [1] LOG:  database system is ready to accept connections

2. Create Dockerized Replica DB

So now we want to create another instance of Postgres which replicates the data from our primary db.

  • A. Define Replica service
  • B. Config replica service in ./db/init-replica.sh.
1version: '3.8'
2
3services:
4  primary:
5    image: postgres:16
6    container_name: primary
7    environment:
8      POSTGRES_DB: mydb
9      POSTGRES_USER: postgres
10      POSTGRES_PASSWORD: password
11    ports:
12      - '5432:5432'
13    volumes:
14      - primary_data:/var/lib/postgresql/data
15      - ./db/replication.sql:/docker-entrypoint-initdb.d/replication.sql
16      - ./db/config/postgresql.conf:/etc/postgresql/postgresql.conf
17      - ./db/config/pg_hba.conf:/etc/postgresql/pg_hba.conf
18    command: postgres -c config_file=/etc/postgresql/postgresql.conf -c hba_file=/etc/postgresql/pg_hba.conf
19    restart: always
20
21  replica1:
22    image: postgres:16
23    container_name: replica1
24    environment:
25      POSTGRES_USER: postgres
26      POSTGRES_PASSWORD: password
27    depends_on:
28      - primary
29    ports:
30      - '5433:5432'
31    volumes:
32      - replica1_data:/var/lib/postgresql/data
33      - ./db/config/postgresql.conf:/etc/postgresql/postgresql.conf
34      - ./db/init-replica.sh:/init-replica.sh
35    entrypoint: /init-replica.sh
36    restart: always
37
38volumes:
39  primary_data:
40  replica1_data:
1#!/bin/bash
2set -e
3
4PGDATA="/var/lib/postgresql/data"
5
6if [ -z "$(ls -A $PGDATA)" ]; then
7  echo "Initializing replica via pg_basebackup..."
8
9  mkdir -p /tmp/pgdata
10  chown postgres:postgres /tmp/pgdata
11
12  su - postgres -c "pg_basebackup -h primary -D /tmp/pgdata -U postgres -Fp -Xs -P -R"
13
14  echo "Copying to PGDATA volume and fixing permissions..."
15  cp -a /tmp/pgdata/. "$PGDATA/"
16  chown -R postgres:postgres "$PGDATA"
17fi
18
19echo "Starting replica PostgreSQL..."
20exec docker-entrypoint.sh postgres -c config_file=/etc/postgresql/postgresql.conf

C. Grant permissions on init file, .db/init-replica.sh.

chmod +x .db/init-replica.sh

3. Check data replication from Master to Slave with shell or PGAdmin

A. Restart docker container.

docker-compose down -v
docker-compose up --build

B. Connect to primary DB container & postgres using bash shell. Check to make sure the Wizards table is defined with \dt.

$ docker exec -it primary psql -U postgres -d mydb

psql (16.8 (Debian 16.8-1.pgdg120+1))
Type "help" for help.

mydb=# \dt
          List of relations
 Schema |  Name   | Type  |  Owner
--------+---------+-------+----------
 public | wizards | table | postgres
(1 row)

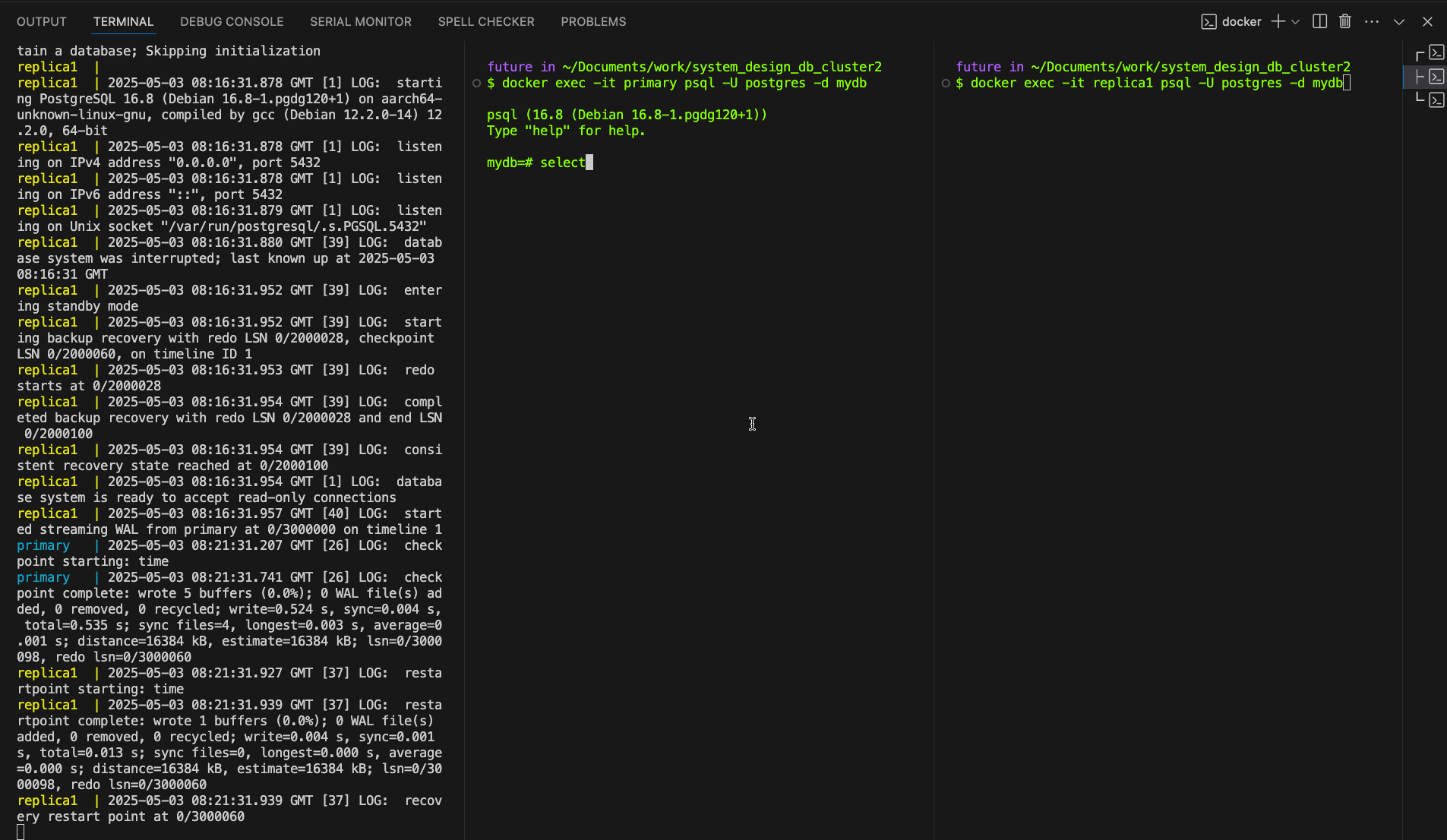

C. Connect to replica1 DB container.

$ docker exec -it replica1 psql -U postgres -d mydb

D. Write to primary DB.

INSERT INTO Wizards (firstName) VALUES ('Merlin');

E. Check replica1 DB copies records from primary.

SELECT * FROM Wizards;
Completed

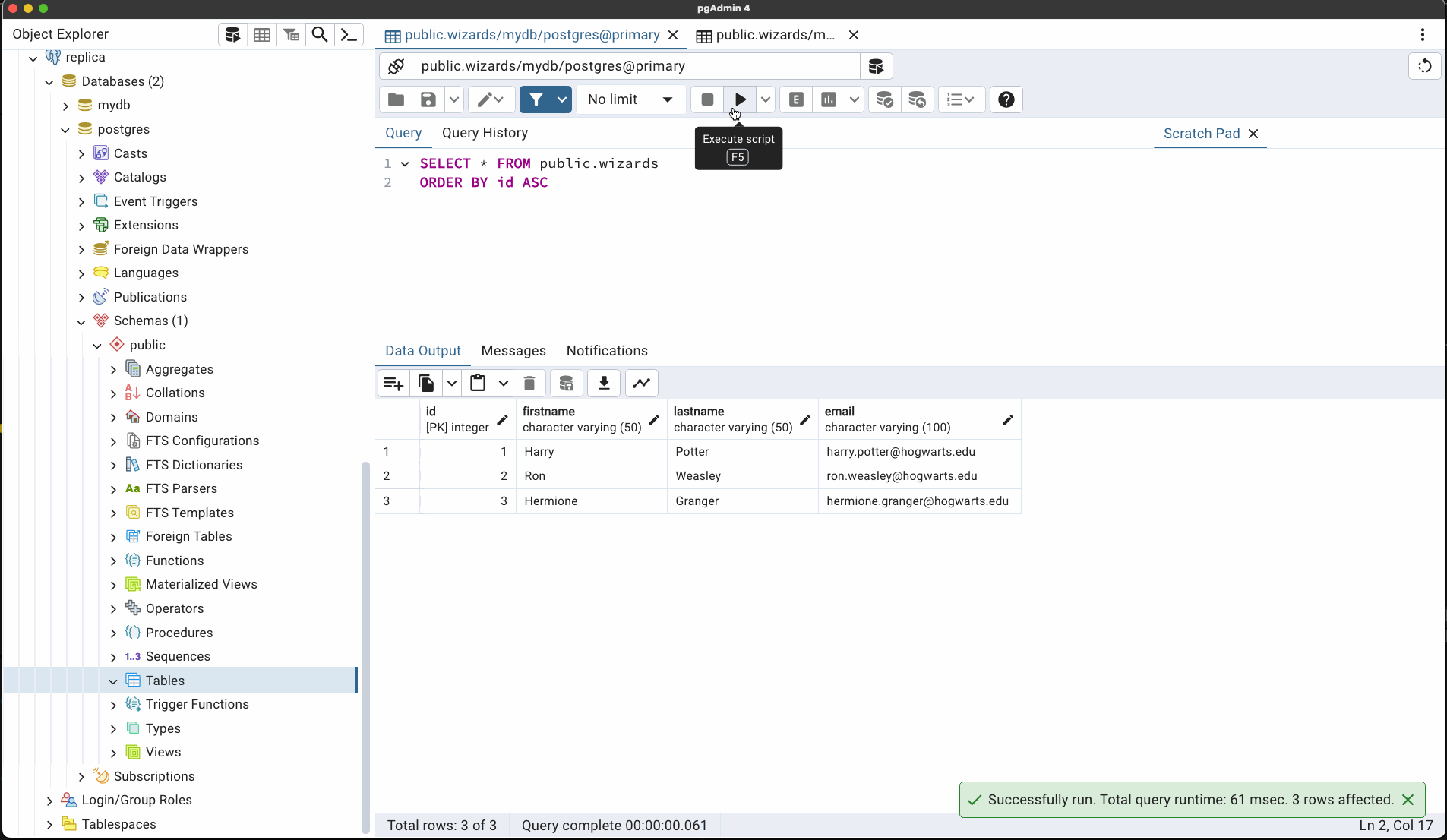

Alternatively use PGAdmin, create 2 server connections, and view your tables & schemes in each DB instance.

Completed
