Introduction

Design a backend API which caches client responses for subsequent requests.

In this post we'll create a simple API endpoint, /data, which serves either fresh or cached data depending on how recently this data was queried.

We'll use Flask & Redis to accomplish this task.

Overview

Setup Project Repo.
Install Dependencies.
Define REST API which serves cached responses.
Run Redis & Server.
Check Results.

Implementation

1. Setup Project Repo

mkdir system_design_api_cache
cd system_design_api_cache

python3 -m venv venv
source venv/bin/activate

2. Install Dependencies

pip3 install flask redis

3. Define REST API serving cached responses

3a. Initialize Cache using Redis:
- 1. First we initialize a Redis cache on line 7.
- 1. Define cache_key() which uses the full path of the route as a key on lines 11-13.
- 1. Store values in cache using the hashed path/key from line 18 on line 22.
- 1. Set the expiration datetime of this cache entry on line 23.
3b. Respond from Cache if possible:
- 1. Use cache.hgetall(key) method to check the cache to use as a response.
- 1. If cached_response exists then response with that instead of a newly queried database response.

1from flask import Flask, request, jsonify
2import redis
3import hashlib
4from datetime import datetime
5
6app = Flask(__name__)
7cache = redis.StrictRedis(host="localhost", port=6379, db=0, decode_responses=True)
8
9CACHE_TIMEOUT = 5
10
11def cache_key():
12    key = request.full_path
13    return hashlib.sha256(key.encode()).hexdigest()
14
15
16@app.route("/data", methods=["GET"])
17def get_data():
18    key = cache_key()
19
20    data = {"message": f"Hello, this is fresh data at {datetime.now().isoformat()}"}
21    timestamp = datetime.now().isoformat()
22    cache.hmset(key, {"message": data["message"], "timestamp": timestamp})
23    cache.expire(key, CACHE_TIMEOUT)
24    return jsonify(
25        {
26            "source": "database",
27            "data": data["message"],
28            "cached_at": timestamp,
29            "expires_in_seconds": CACHE_TIMEOUT,
30        }
31    )
32
33
34if __name__ == "__main__":
35    app.run(debug=True)

1@app.route("/data", methods=["GET"])
2      def get_data():
3      key = cache_key()
4      cached_response = cache.hgetall(key)
5
6      if cached_response:
7          cache_timestamp = cached_response["timestamp"]
8          expiration_time = (
9              CACHE_TIMEOUT
10              - (datetime.now() - datetime.fromisoformat(cache_timestamp)).seconds
11          )
12
13          return jsonify(
14              {
15                  "source": "cache",
16                  "data": cached_response["message"],
17                  "cached_at": cache_timestamp,
18                  "expires_in_seconds": max(expiration_time, 0),
19              }
20          )
21
22      data = {"message": f"Hello, this is fresh data at {datetime.now().isoformat()}"}
23      timestamp = datetime.now().isoformat()
24      cache.hmset(key, {"message": data["message"], "timestamp": timestamp})
25      cache.expire(key, CACHE_TIMEOUT)
26      return jsonify(
27          {
28              "source": "database",
29              "data": data["message"],
30              "cached_at": timestamp,
31              "expires_in_seconds": CACHE_TIMEOUT,
32          }
33      )

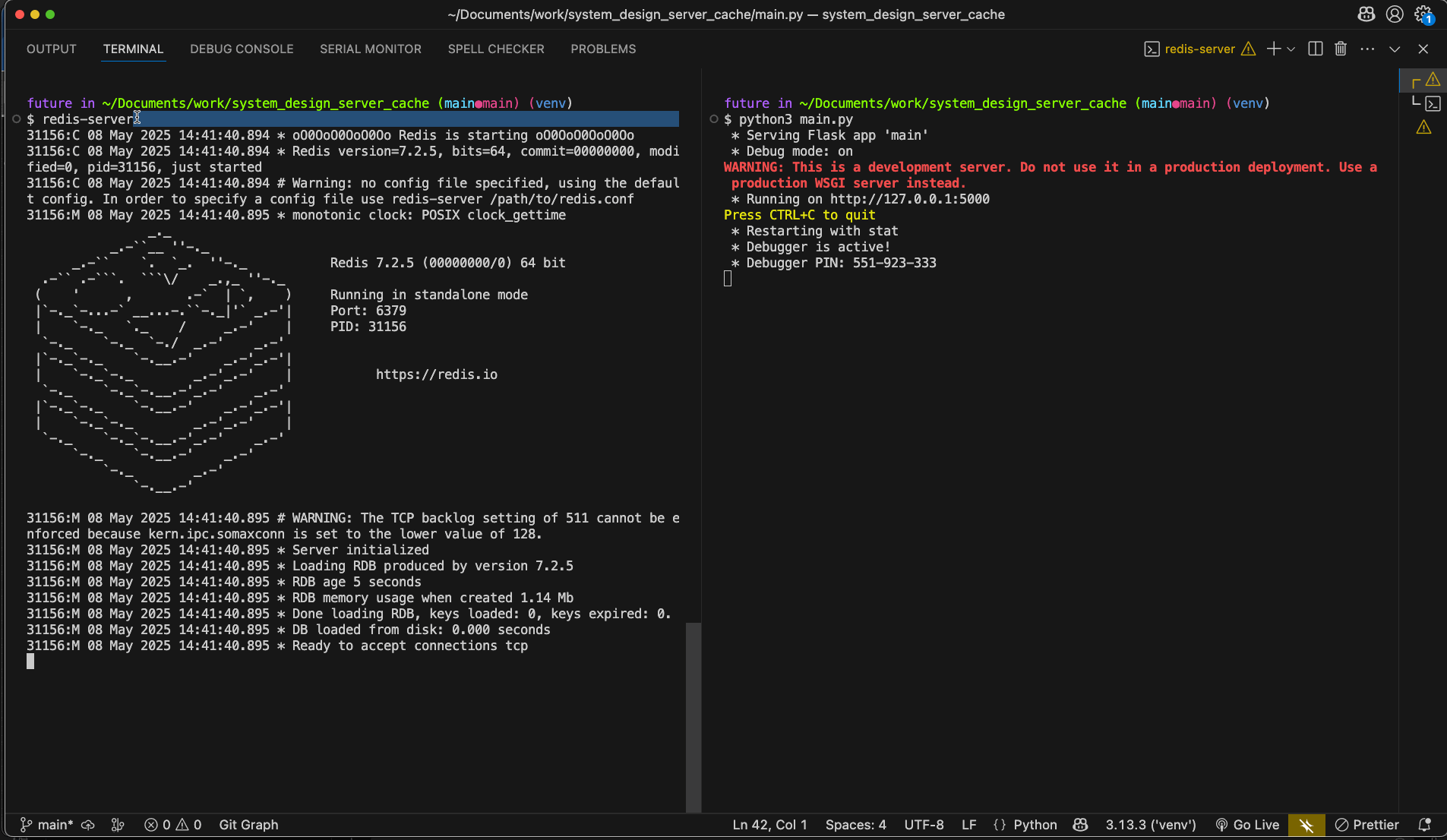

4. Run Redis & Server

redis-server
python3 main.py

5. Check Results

Open browser and navigate to http://127.0.0.1:5000/data and investigate the JSON response your server gives you.

You should notice a few things:

If you navigate to the data route you sometimes get a database sourced response and sometimes a cache.
If you navigate to the data route with query string params, appending ?foo=bar for example, you'll get newly cached responses.

Conclusion

Redis is a simple key-value data store which can easily handle 1 million read/write operations per second with sub-millisecond latency.

For data we want to cache we append to the Redis cache/database an object under a key of our choosing.

In this case we used a sha256 from Python's hashlib lib. However you don't have to use that algorithm and can use your own.

The cache was wrapped by a minimal Flask REST API which you can learn how to create in this Flask API tutorial.
